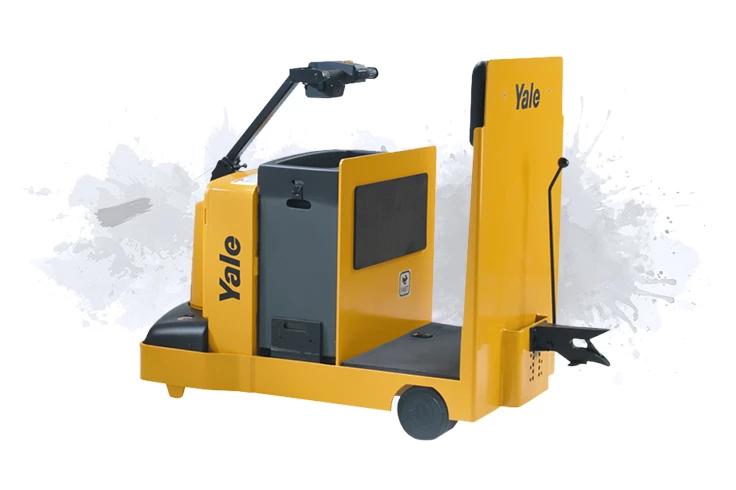

MTR005-MTR007F trucks are made to efficiently carry out low-level order picking and horizontal transportation tasks to help you meet your bottom line. The durability of the trucks’ robotically welded steel frame insures its ability to take on the heavy duty tugging and tractor applications.

Tough enough to handle difficult tasks, the MTR005-MTR007F tow trucks are “human engineered” with state-of-the-art technology, such as the wide grip handle, premium 3” thick backpad with integral arm rest. Built to require less maintenance; they lalso allow extremely easy serviceability.

INTELLIGENT ERGONOMICS

The vertically adjustable control handle design provides full control of travel, steering and horn while allowing optimum maneuverability
Steering column has three tilt positions and locks forward for battery removal
Narrow width 430 mm standard handle
Full rotary grip handle allows the operator to maintain full control of direction and speed
Conveniently located brake levers mounted on the control handle
Convenient “rabbit” speed floor switch
Cushioned knee and backpads
Large trail wheels for smooth ride

ULTIMATE PERFORMANCE & PRODUCTIVITY

Robotically welded steel frame
Two-stage brake is applied by squeezing the brake levers mounted on the control handle
Electric park brake switch is conveniently located on the cowl
Separately Excited Motor (SEM) technology for enhanced performance
Auto Deceleration System
Automatic latching, manually released jaw type coupler

SUPERB SERVICE

Designed for minimal troubleshooting and repair time
On-board diagnostics
Hall Effect speed control sensor eliminates the use of potentiometers, therefore reducing wear and adjustment
Fused traction controller
Stationary traction motor eliminates cable flex
Metal Oxide Semiconductor Field Effect
Transistor (MOSFET) traction controller with self-diagnostics
Drive axle seal string guard reduces potential damage from string, shrink-wrap or banding tap
